TG-5-S

$370.00

Category:

Description

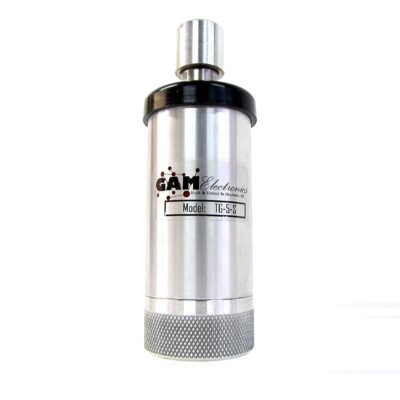

The TG-5-S is a base station antenna that can also be applied to marine vessels. The antenna can be tuned to any desired frequency between 144 – 160 MHz and includes a 37” whip. Fully assembled the TG-3-SH stands 112” tall and has a gain of 7.1 dBi. This antenna is suitable for both land and sea application and is hermetically sealed in a hardened aluminum canister to ensure life longevity. This American made product is hand wound and factory tuned to ensure peak performance.

  • This antenna can be tuned to any frequency within the 144 – 160 MHz Spectrum
  • Total Length of the Antenna Whip is 37″ (MHz Cut Chart is Included)
  • Hand-wound loading coil is factory tuned and tested to insure peak performance at a specified frequency
  • Coil is hermetically sealed to prevent moisture damage
  • No ground plane required

SPECIFICATIONS

  • Gam Model No. TG-5-S
  • Length (whip): 37″
  • Number of Sections: 3

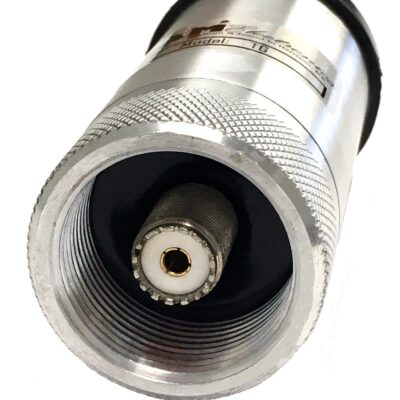

  • Connector Supplied: SO-239
  • Fully Assembled Dimensions 112” X 2” X 2”
  • Applications: 144 – 160 MHz
  • Gain: 5 dB, 7.1 dBi
  • Max. Output Power: 500 Watts
  • Note: Cable Sold Separately
  • Use RG 58 for runs less than 20 feet
  • Use RG-8X for runs over 20 feet

Additional information

Weight 48 oz
Dimensions 54 x 4.25 x 4.25 in
Frequency

144-160MHz

Whip Length

37"

VSWR

 1.5:1 or less

Gain in DB

5 dbd, 7.1 dbi

Power Rating

500 Watts
