Description

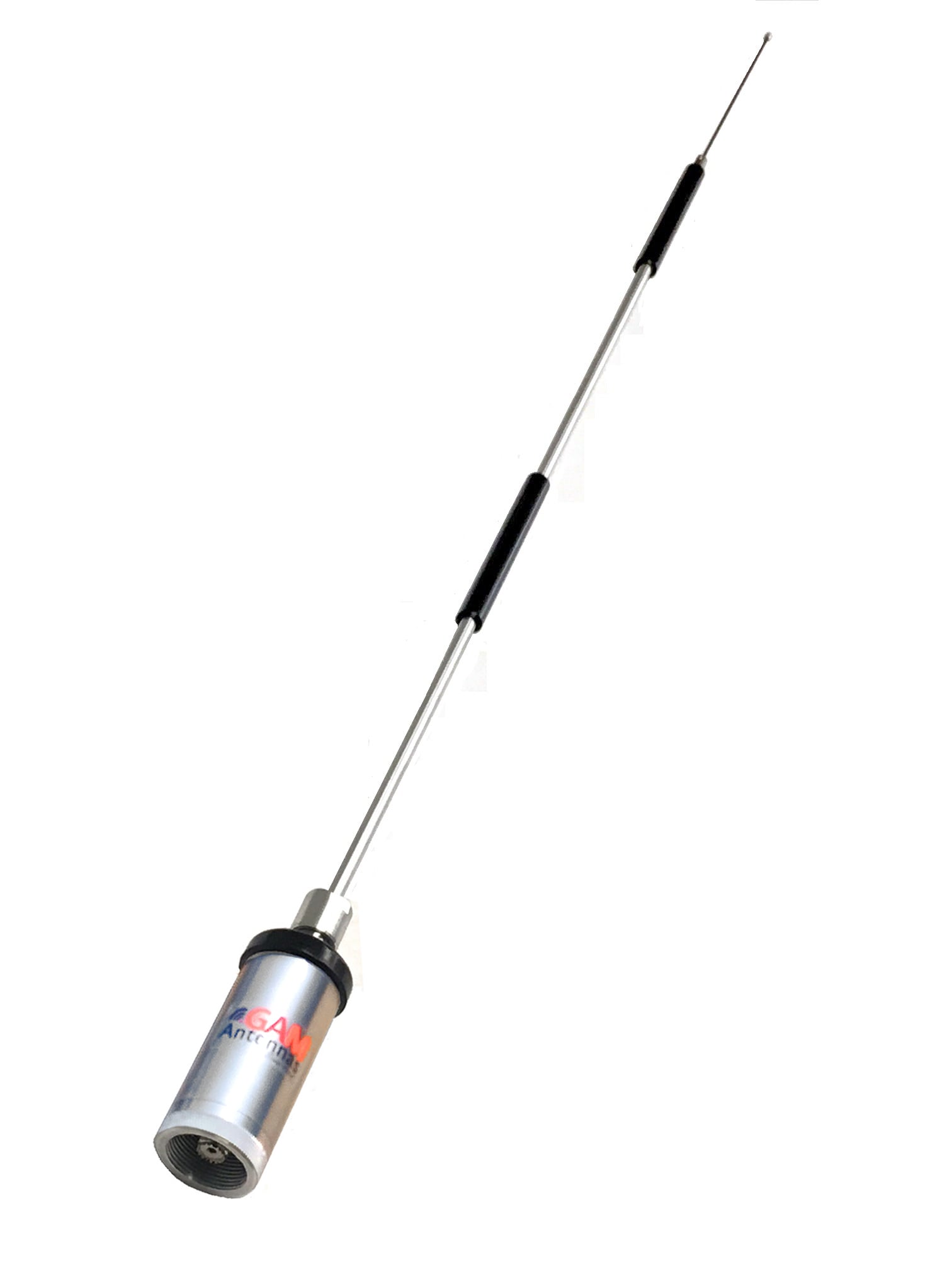

Our highest performer, commonly used for Marine VHF Frequency and AIS, you can rely that the GAM TG-5-SH will get the signal where it needs to be. Fully assembled the TG-5-SH stands 138” tall with a gain of 7.1 dBi. This antenna is suitable for both land and sea application and is hermetically sealed in a hardened aluminum canister to ensure life longevity. This American made product is hand wound and factory tuned to ensure peak performance
- This antenna can be tuned to any frequency within the 156 – 174 MHz Spectrum
- Total Length of the Antenna Whip is 34.25″ (MHz Cut Chart is Included)
- Hand-wound loading coil is factory tuned and tested to insure peak performance at a specified frequency
- Coil is hermetically sealed to prevent moisture damage
- No ground plane required
SPECIFICATIONS
- GAM Model No. TG-5-SH
- Length (whip): 34.25″
- Number of Sections: 3
- Connector Supplied: SO-239
- Fully assembled Dimensions 138” X 2” X 2”
- Applications: AIS or VHF Marine Band (Cut to Proper Length)
- Frequency Range: 156 – 174 MHz
- Cut Length to Proper Frequency for Application
- Gain: 5 dB, 7.1 dBi
- Max. Output Power: 500 Watts
- Note: Cable Sold Separately
- Use RG 58 for runs less than 20 feet
- Use RG-8X for runs over 20 feet
