Description

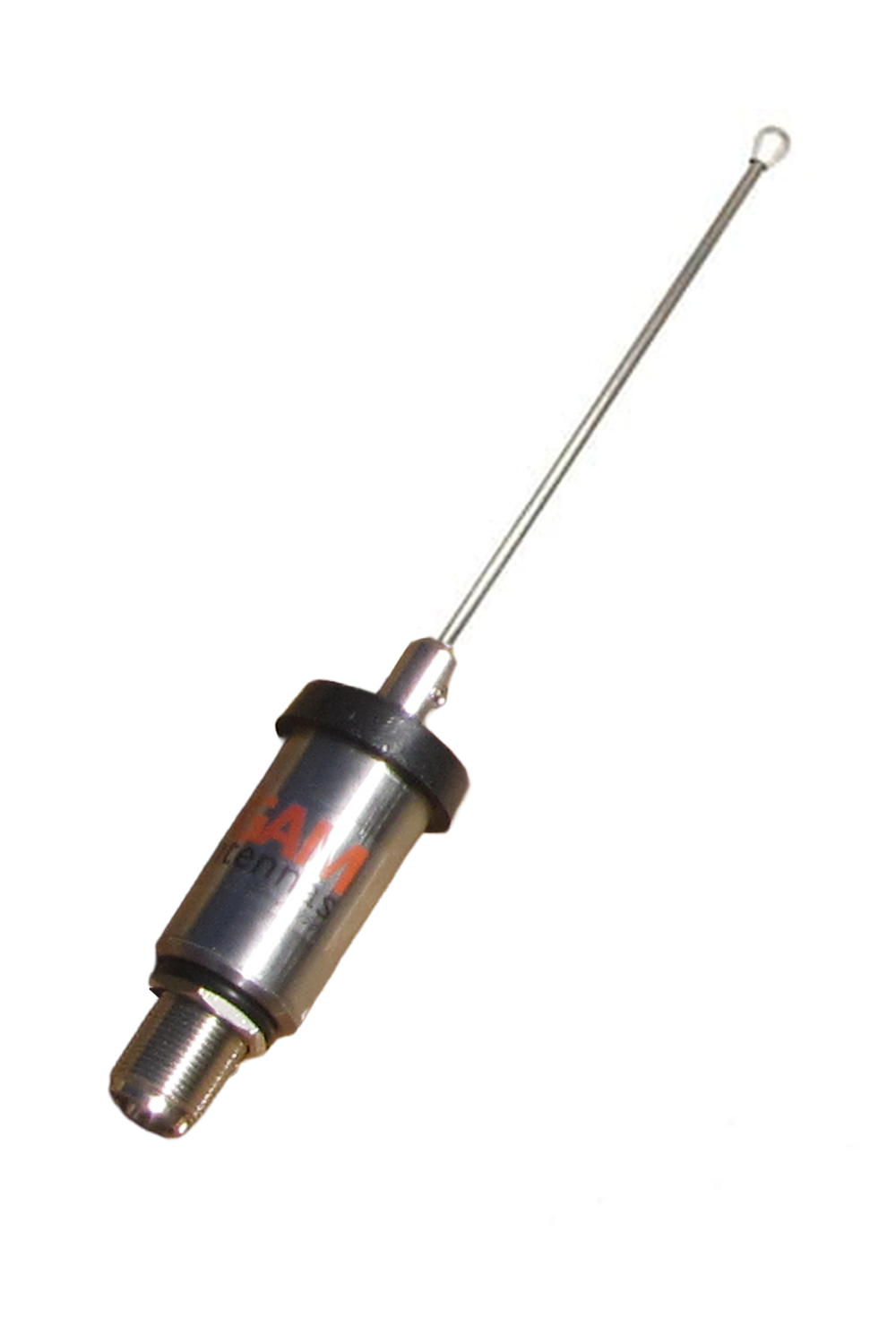

Broad banded to insure maximum signal strength over 800-850 MHz. The GAM Trunking antenna comes with a 5.6” whip and can be center tuned to any desired frequency in the 800-850 MHz band. The compact antenna is hermetically sealed in a stainless steel canister to ensure life longevity. This American made product is hand wound and factory tuned to ensure peak performance.
- The GAM Trunking antenna is center tuned to 800 MHz
- Hand-wound loading coil is factory tuned and tested to insure peak performance at a specified frequency
- Stainless steel coil housing
- Coil is hermetically sealed to prevent moisture damage
- No ground plane required
SPECIFICATIONS
- Gam Model No. Trunking antenna
- Length (Stainless Steel Whip): 5.6”
- Number of Sections: 1
- Connector Supplied: SO-239
- Application: 800 – 850 MHz
- Fully Assembled Dimensions 8.6” X 1” X 1”
- Gain: 3 dB 5.1 dBi
- Max. Output Power: 150 Watts
- Note: Cable Sold Separately
- Use RG 58 for runs less than 20 feet
- Use RG-8X for runs over 20 feet
