USS-2

$75.00

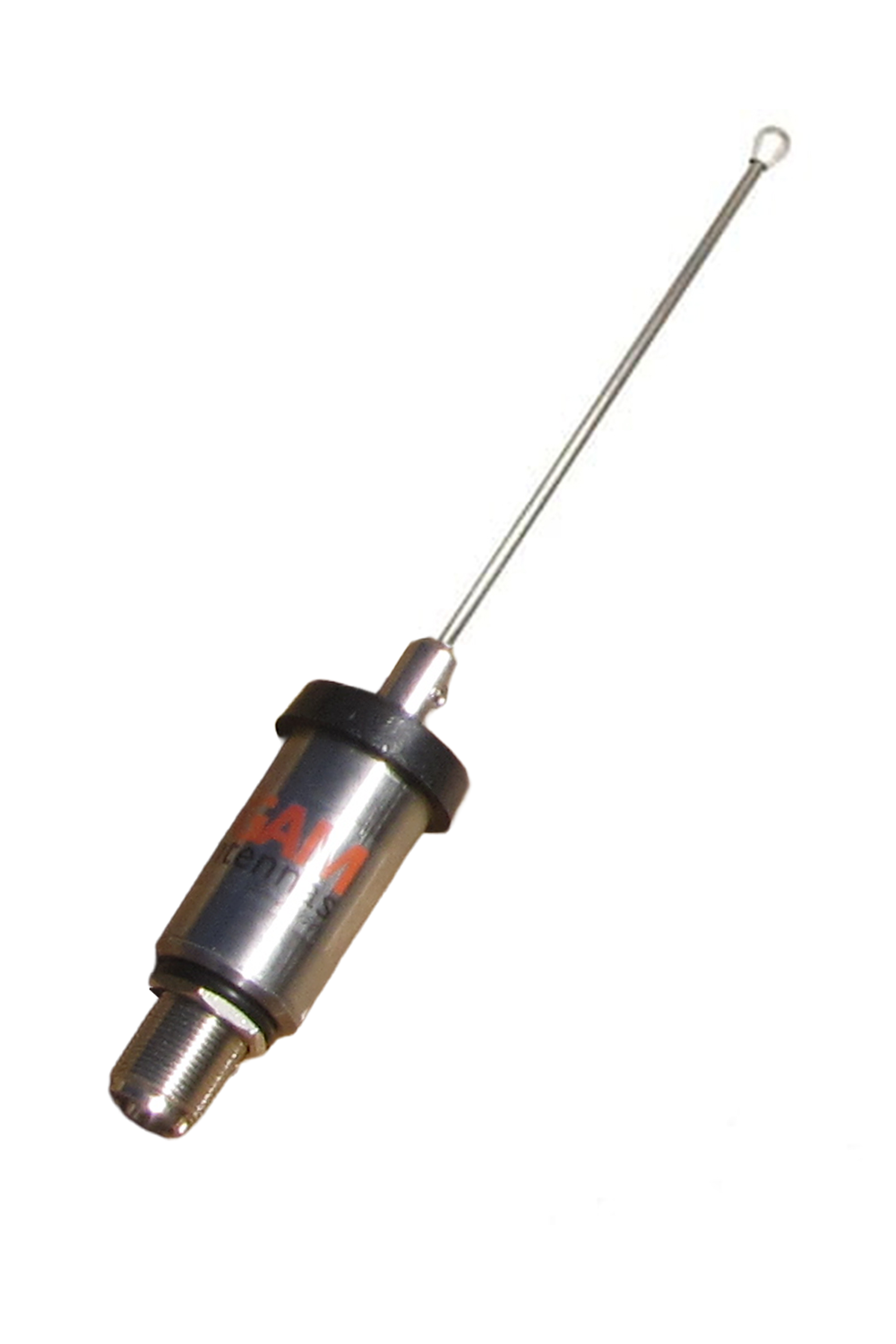

UHF antenna for 420-470 MHz.

Category:

Description

Broad banded to insure maximum signal strength over the UHF 420 – 470 MHz band. The USS-2 has an 11” – 15” whip and is mainly used for security mesh systems in residential, commercial, industrial and government systems. The hermetically sealed stainless steel housing ensures long lasting communication throughout your team’s security mesh area. This American made product is hand wound and factory tuned to ensure peak performance.

  • Hand-wound loading coil is factory tuned and tested to insure peak performance at a specified frequency
  • Stainless steel coil housing
  • Coil is hermetically sealed to prevent moisture damage
  • No ground plane required

SPECIFICATIONS

  • Gam Model No. USS-2
  • Length (Stainless Steel Whip): 11 – 15″
  • Number of Sections: 1
  • Connector Supplied: SO-239
  • Application: UHF Band 420 – 470 MHz
  • Fully Assembled Dimensions 18” X 1” X 1″
  • Gain: 3 dB 5.1 dBi
  • Max. Output Power: 150 Watts
  • Note: Cable Sold Separately
  • Use RG 58 for runs less than 20 feet
  • Use RG-8X for runs over 20 feet

Additional information

Weight 4 oz
Dimensions 18 x 2 x 2 in
Frequency

420-470 MHz

Whip Length

11-15"

VSWR

 1.5:1 or less

Gain in DB

 3 dbd, 5.1 dbi

Power Rating

150 Watts
