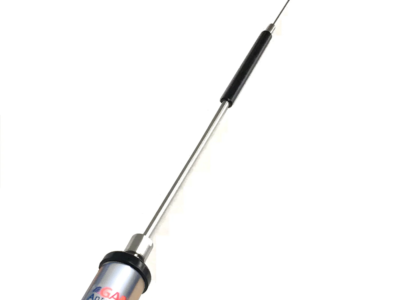

TG Series

The TG series antennas have a power rating up to 500 watts and our “S” and “SH” models offer more gain than our Mini-series models.

  • Every loading coil is hand wound and factory tuned and tested for proper performance
  • Designed to mount on a standard 1-1/4” threaded pipe
  • No ground plane required

Available in the Following Models




TG-3  (144-174 MHz)

This antenna has a single element and can be trimmed to your desired frequency within 144 to174 MHz.
We also offer several pre-cut and center tuned versions.

SPECIFICATIONS

  • Aluminum Rod Length: 36”
  • Number of Sections: 1
  • Connector Supplied: SO-239
  • Fully Assembled Dimensions: 41.5” x 2” x 2”
  • Gain: 3 dBd (5.1 dBi)
  • Max Power: 500 watts
  • Cable Sold Separately (see Adapters/Mounting Devices Page)
  • Use RG 58 for runs less than 20 feet
  • Use RG 8X for runs over 20 feet

TG-3-S  (144 – 160 MHz)

This antenna has a phasing coil which allows both elements to radiate in phase with each other. This produces increased gain in its effective radiated power.

We offer this antenna with a cut chart for you to trim the elements to your desired frequency, or you may select from the pre-cut, center tuned versions.

SPECIFICATIONS

  • Number of Elements: 2
  • Connector Supplied: SO-239
  • Fully Assembled Dimensions: 87” x 2” x 2”
  • Gain: 4.5 dBd (6.6 dBi)
  • Max Power: 500 watts
  • Cable Sold Separately (see Adapters/Mounting Devices Page)
  • Use RG 58 for runs less than 20 feet
  • Use RG 8X for runs over 20 feet

TG-3-SH  (156 – 174 MHz)

This antenna has a phasing coil which allows both elements to radiate in phase with each other. This produces increased gain in its effective radiated power.
We offer this antenna with a cut chart for you to trim the elements to your desired frequency, or you may select from the pre-cut, center tuned versions.

SPECIFICATIONS

  • Number of Elements: 2
  • Connector Supplied: SO-239
  • Fully Assembled Dimensions: 87” x 2” x 2”
  • Gain: 4.5 dBd (6.6 dBi)
  • Max Power: 500 watts
  • Cable Sold Separately (see Adapters/Mounting Devices Page)
  • Use RG 58 for runs less than 20 feet
  • Use RG 8X for runs over 20 feet

TG-5-S  (144 – 160 MHz)

This antenna has two phasing coils and three elements in phase with each other. This is our largest antenna with the most gain. We offer this antenna with a cut chart for you to trim the elements to your desired frequency, or you may select from the pre-cut, center tuned versions.

SPECIFICATIONS

  • Number of Elements: 3
  • Connector Supplied: SO-239
  • Fully Assembled Dimensions: 138” x 2” x 2”
  • Gain: 5 dBd (7.1 dBi)
  • Max Power: 500 watts
  • Cable Sold Separately (see Adapters/Mounting Devices Page)
  • Use RG 58 for runs less than 20 feet
  • Use RG 8X for runs over 20 feet

TG-5-SH  (156 – 174 MHz)

This antenna has two phasing coils and three elements in phase with each other. This is our largest antenna with the most gain. We offer this antenna with a cut chart for you to trim the elements to your desired frequency, or you may select from the pre-cut, center tuned versions.

SPECIFICATIONS

  • Number of Elements: 3
  • Connector Supplied: SO-239
  • Fully Assembled Dimensions: 138” x 2” x 2”
  • Gain: 5 dBd (7.1 dBi)
  • Max Power: 500 watts
  • Cable Sold Separately (see Adapters/Mounting Devices Page)
  • Use RG 58 for runs less than 20 feet
  • Use RG 8X for runs over 20 feet
