WeatherFax/DSC

$75.00

Specifically tuned to maximize signal strength for improved fax reception

Category:

Description

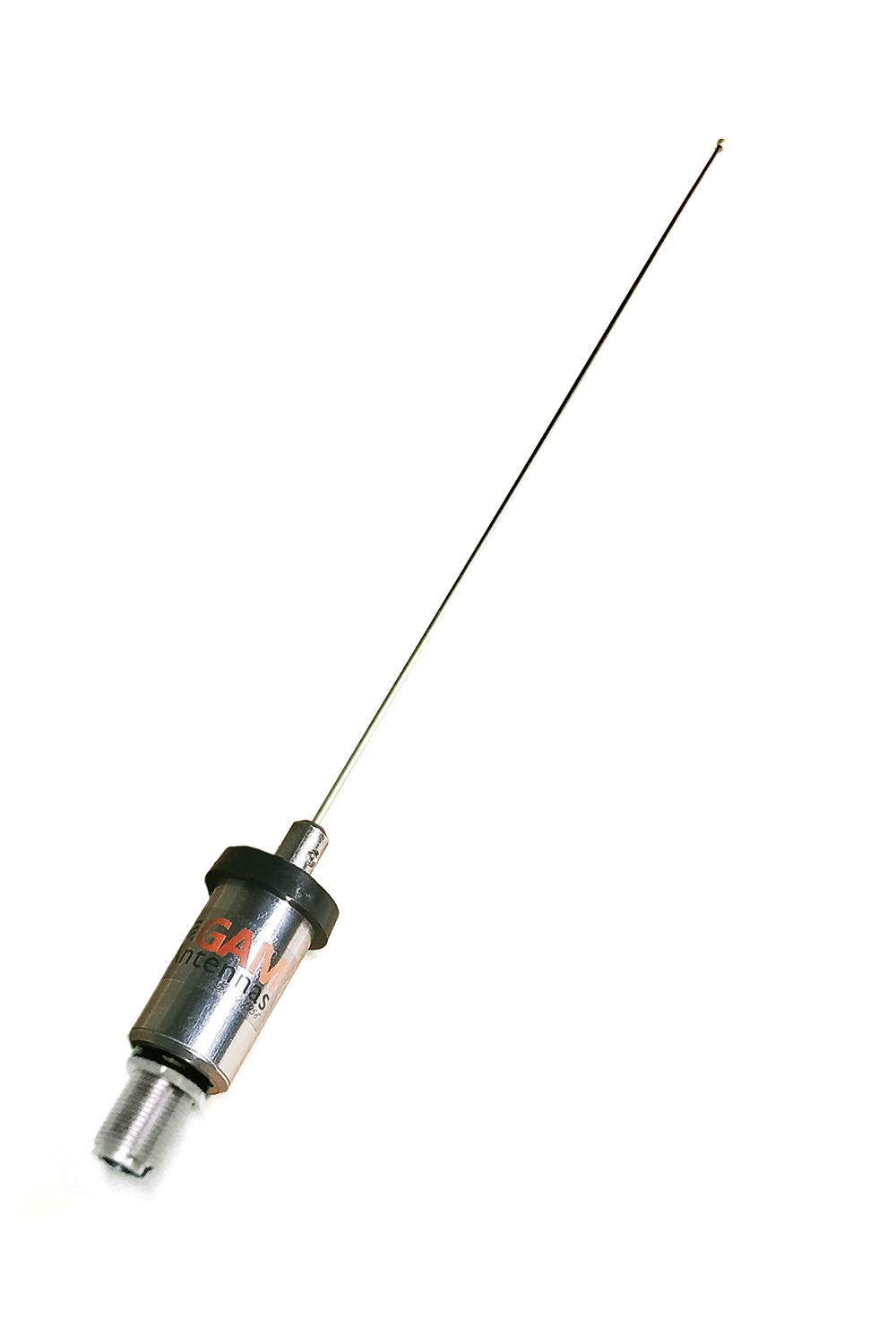

Specifically hand tuned to maximize signal strength for improved fax reception. This antenna comes with a 54” whip and has a frequency range of 2 – 30 MHz. The compact antenna is suitable for both large and small vessels and is hermetically sealed in a stainless steel canister to ensure life longevity. This American made product is hand wound and factory tuned to ensure peak performance.

  • The GAM Weather Fax/DSC antenna is center tuned to 15 MHz
  • Hand-wound loading coil is factory tuned and tested to insure peak performance at a specified frequency
  • Stainless steel coil housing
  • Coil is hermetically sealed to prevent moisture damage
  • No ground plane required

SPECIFICATIONS

  • Gam Model No. Weather Fax/DSC antenna
  • Length (Stainless Steel Whip): 54”
  • Number of Sections: 1
  • Connector Supplied: SO-239
  • Application: 2 – 30 MHz
  • Fully Assembled Dimensions 57” X 1” X 1”
  • Gain: 3 dB 5.1 dBi
  • Max. Output Power: 150 Watts
  • Note: Cable Sold Separately
  • Use RG 58 for runs less than 20 feet
  • Use RG-8X for runs over 20 feet

Additional information

Weight 4 oz
Dimensions 57 x 2 x 2 in
Frequency

2-30 MHz

Whip Length

54"

VSWR

 1.5:1 or less

Gain in DB

 3 dbd, 5.1 dbi

Power Rating

150 Watts
