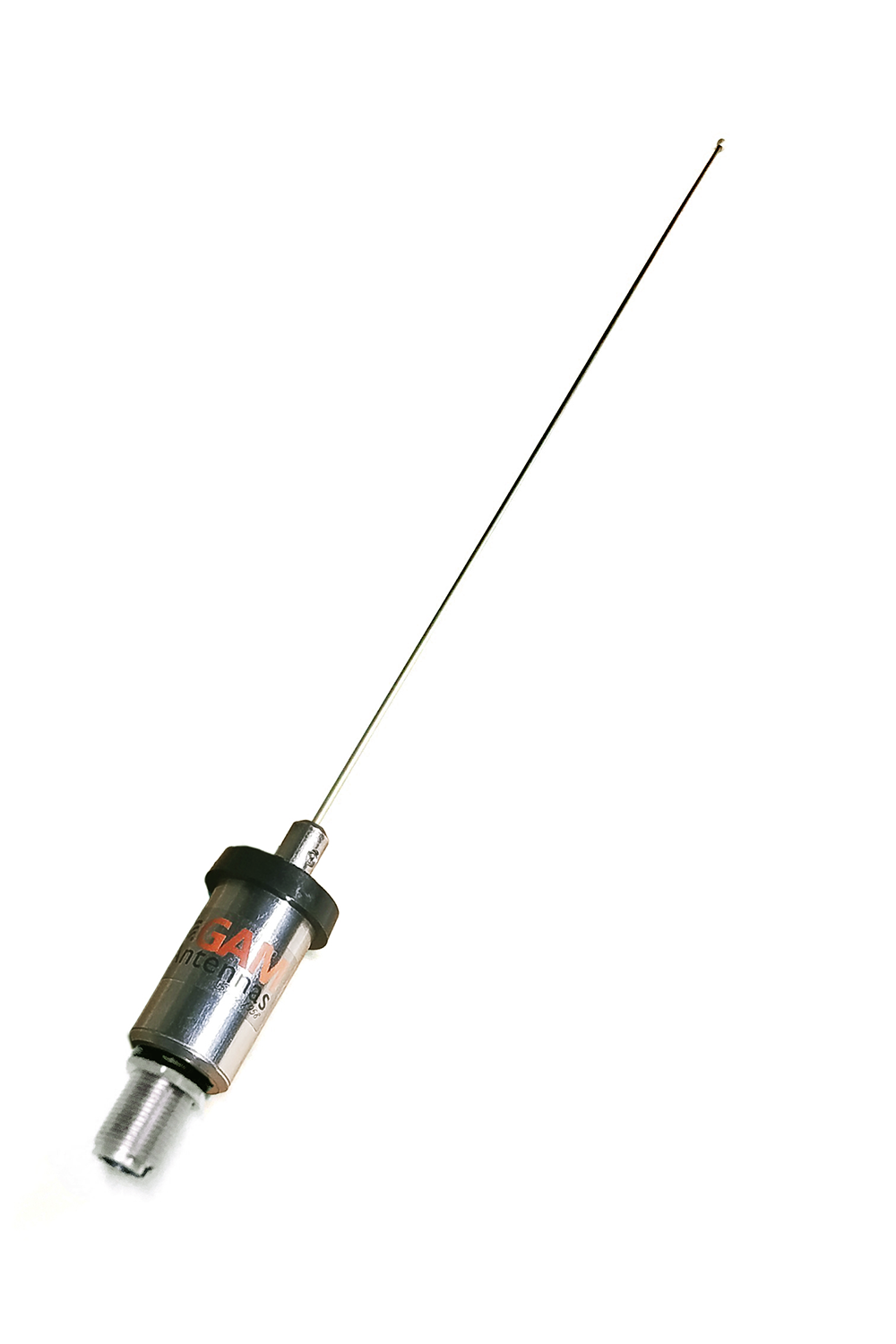

SS-2 VHF Antenna-Cut Chart

The SS-2 is a high-performance, no-ground-plane VHF antenna covering the full VHF band.  It includes a full-length stainless steel whip that must be trimmed to capture your target frequency using the provided cut chart, offering great flexibility for those in unique marine situations and vast rural areas.

Constructed with high-quality materials and superior weather sealing, the SS-2 delivers 3 dBd gain in a compact, very dependable antenna.  It is built to handle constant motion, water intrusion, and UV exposure.

Specifications

• Frequency Range: 144 – 174 MHz
• Requires Trimming Whip for Frequency – cut chart provided
• Connector: SO-239
• VSWR: <1.5:1
• Gain: 3 dBd (5.1 dBi)
• Max Power: 150 watts
• No ground plane required
• Dimensions: approx. 43” x 1” x 1” (actual depends on whip trimming)
• Weight: 4 oz
• Stainless steel
• Recommended Cable: RG-58 (runs under 20 ft), RG-8X (runs over 20 ft)
• Cable Sold Separately

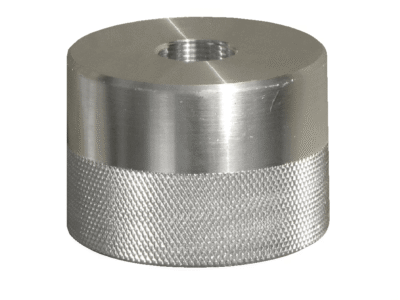

• Requires an adapter for mounting to a marine ratchet

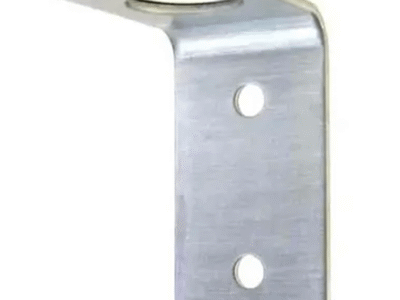

• Right Angle Bracket sold separately as a mounting option
• Applications: Marine, AIS, Geophysical, Seismic
