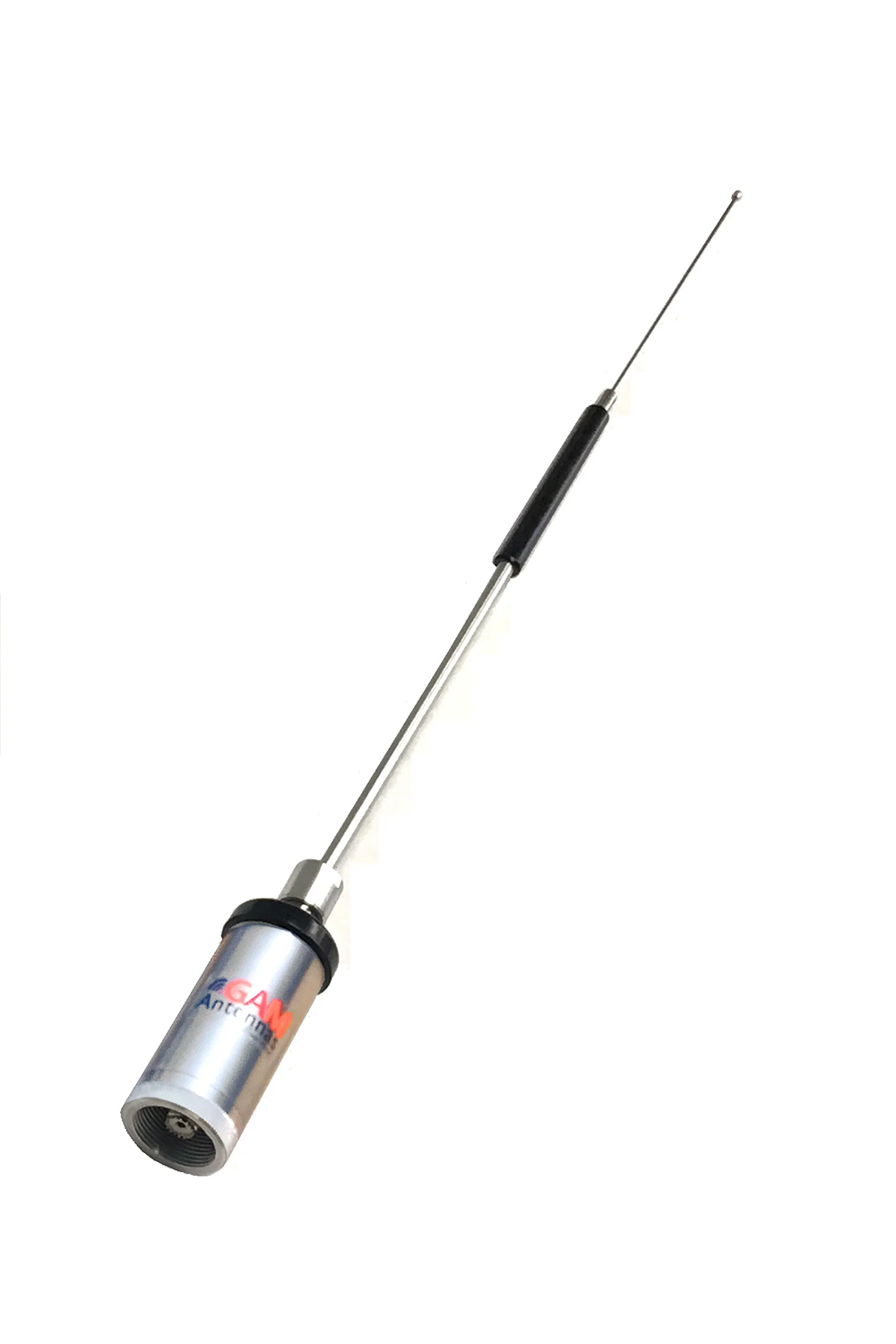

TG 4 High Gain VHF Antenna

The TG‑4 is a high‑performance VHF antenna engineered for reliable marine and base‑station communications. This mid-sized model provides increased gain for extended range and consistent signal clarity for voice and AIS applications.

The antenna features a two‑element design with a single phasing coil, delivering 4.5 dBd of gain. This configuration makes it a suitable antenna for larger vessels with moderate motion, fixed base stations, and HAM radio operators requiring reliable long-range communication.

The antenna is hand built and factory tuned to the selected operating frequency, chosen from the drop-down menu at checkout.

Its robust construction and performance make it well suited for demanding marine environments.

Specifications

• Frequency Range: VHF Marine
• Elements: 2
• Gain: 4.5 dBd (6.6 dBi)
• Maximum Power: 500 W
• Connector: SO‑239
• Assembled Dimensions:   90" × 2" × 2"
• Mounts on 1-1/4" threaded pipe
• Ratchet Mount Adapter Available
• Coax Cable Sold Separately
• Recommended Cable:
  • RG‑58 (runs under 20 ft)
  • RG‑8X (runs over 20 ft)
• Applications
  • Marine communications
  • Base stations
  • AIS
  • Splitter systems
