Our Mini series antennas have a power rating up to 150 watts and provide great gain in a compact dependable package.

• Proudly built in the USA
• Hand-wound loading coils, factory tuned and tested to ensure peak performance
• VSWR 1.5:1 or less
• No fiberglass
• Rugged stainless steel construction
• No ground plane required (except for SS-27 CB)

Mini Series Stainless Steel ADAP+Antenna Package

Package includes your choice of Mini Series Antenna

• SS-2 w/cut chart
• SS-2 Marine (156 MHz)
• SS-2 AIS (162 MHz)
• SS-2 SPLIT (159 MHz)

Stainless Steel ADAP mates to a standard fold down ratchet mount. Pre-wired socket is supplied with 20’ of RG-58 coax cable (bottom exit only)

SS-2 (144-174 MHz)

This antenna has a power rating up to 150 watts and can operate on any frequency within the 144-174 MHz VHF spectrum. A cut chart is supplied with this antenna so you may trim the whip to your desired frequency.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 43” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Max Power: 150 watts
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

SS-2 Marine (156.875 MHz)

SS-2 antenna pre-cut and tuned to Marine Channel 16.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 38” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Max Power: 150 watts
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

SS-2 AIS (162 MHz)

SS-2 antenna pre-cut and tuned to AIS channel 162 MHz.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 36.5” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Max Power: 150 watts
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

SS-2 SPLIT (159 MHz)

SS-2 antenna pre-cut and tuned to 159 MHz to be used for both Marine 156 and AIS 162.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 37” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Max Power: 150 watts
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

USS-2 (420 – 470 MHz)

Broad banded for maximum signal strength over the UHF 420 – 470 MHz band. A cut chart is supplied with this antenna so you can trim the whip for your desired frequency.

This antenna can also be special ordered pre-tuned to a custom frequency within this range.
Please enter your custom frequency in the “notes” section on the shopping cart if ordering online.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 18” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Max Power: 150 watts
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

SS-140 (138 – 145 MHz)

Center tuned at 140 MHz this antenna covers a frequency range between 138 – 145 MHz.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 43” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Max Power: 150 watts
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

SS-220 (218 – 222 MHz)

Center tuned at 220 MHz this antenna covers a frequency range between 218 – 222 MHz.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 28” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Max Power: 150 watts
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

Trunking (800 – 850 MHz)

Center tuned at 825 MHz this antenna covers a frequency range between 800 – 850 MHz.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 8.6” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Max Power: 150 watts
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

FM (88 – 108 MHz) receive only antenna

Center tuned at 98 MHz this antenna covers a frequency range between 88 – 108 MHz.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 57” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

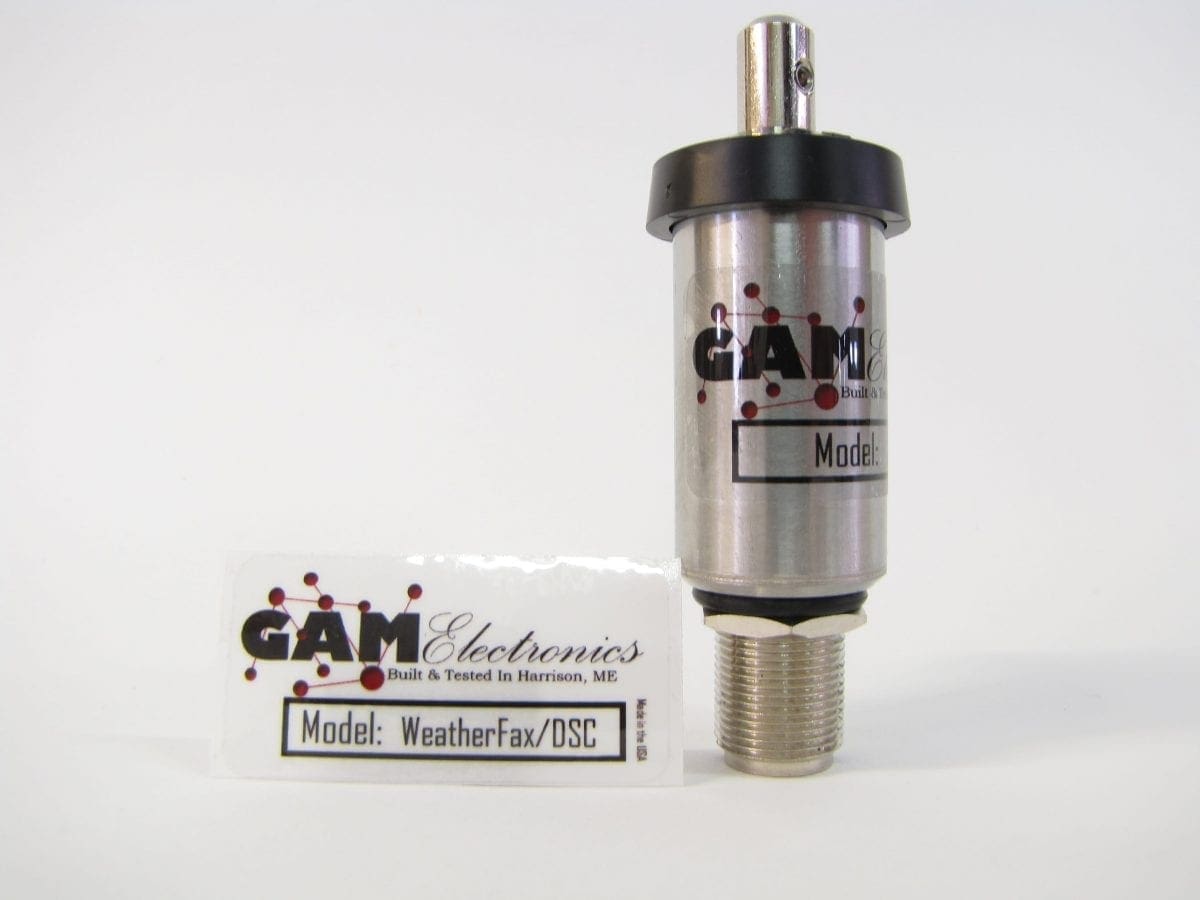

Weather Fax/DSC (2 – 30 MHz) receive only antenna

This is a receive only antenna optimized for the high frequency band.

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 57” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet

SS-27 CB (26.9 – 27.4 MHz)

Center tuned at 27 MHz to cover the Citizens Band Radio (CB radio).

SPECIFICATIONS

• Connector Supplied: SO-239
• Fully Assembled Dimensions: 57” x 1” x 1”
• Gain: 3 dBd (5.1 dBi)
• Cable Sold Separately
• Use RG 58 for runs less than 20 feet
• Use RG 8X for runs over 20 feet
• Does require a ground plane
